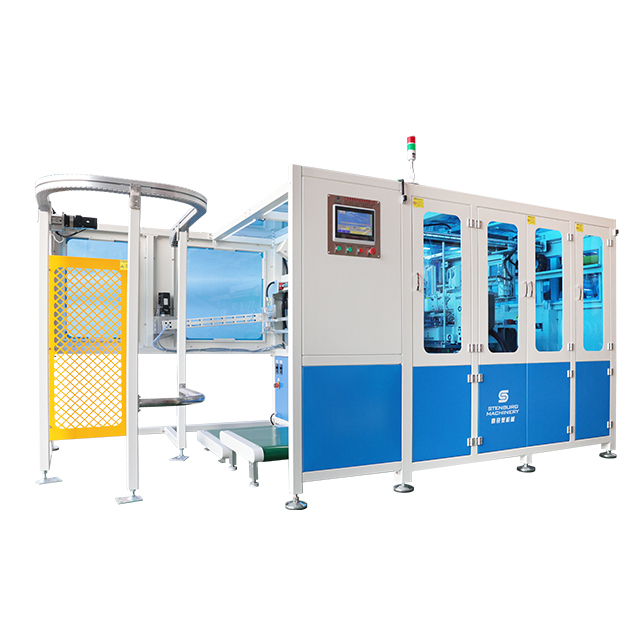

XDB-BS07 Vertical Handle Border Automatic Production Line

Automatic sewing handle, the machine automatically calculates the handle length,and you can choose between full roll handle mode and single handle mode
Automatic sewing label, can put 3 different size labels on the same border
Automatic marking, automatic ventilation air hole, automatic length measurement,automatic cutting, automatic splicing
The equipment is equipped with BROTHER sewing machine head and uses electrical components of international premium brands
Availability:
Quantity:

1

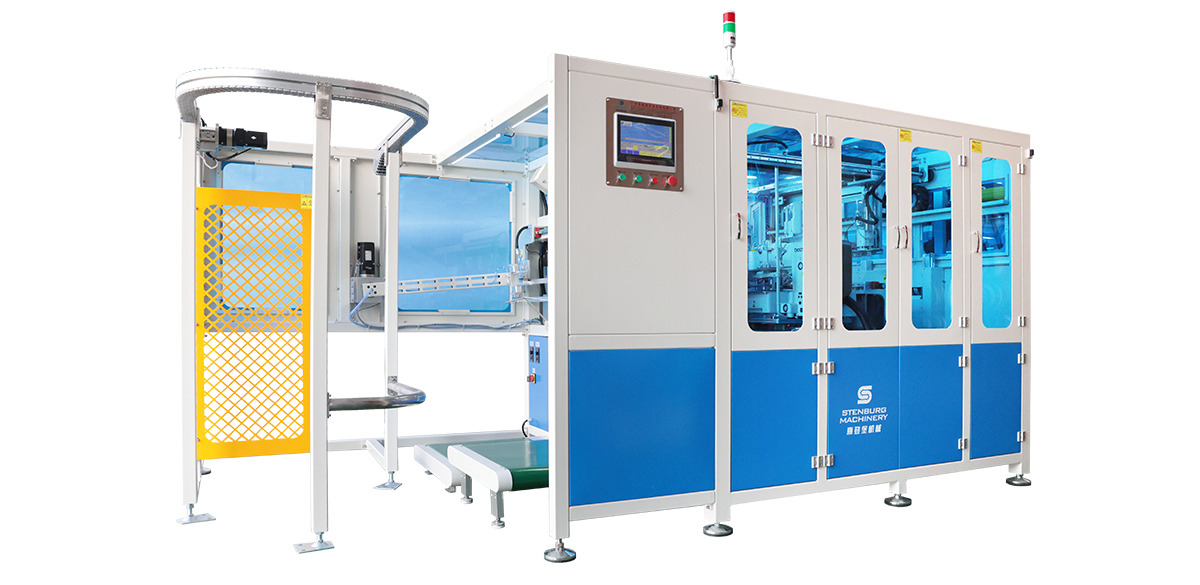

XDB-BS07 Vertical Handle Border Automatic Production Line

Technical Characteristics

1.Automatic sewing handle, the machine automatically calculates the handle length,  and you can choose between full roll handle mode and single handle mode

2.Automatic sewing label, can put 3 different size labels on the same border

3.Automatic marking, automatic ventilation air hole, automatic length measurement,  automatic cutting, automatic splicing

4.The equipment is equipped with BROTHER sewing machine head and uses electrical components of international premium brands

5.Bus control system, programmable design interface, for efficient and automated production of mattress border

6.A robust data storage system that enables one-click retrieval of products in various  specifications, ensuring convenient and swift operations

7.Configure the MES production plan to arrange production tasks reasonably, monitor data collection in real-time, and allow managers to monitor the production site through a  visual interface remotely

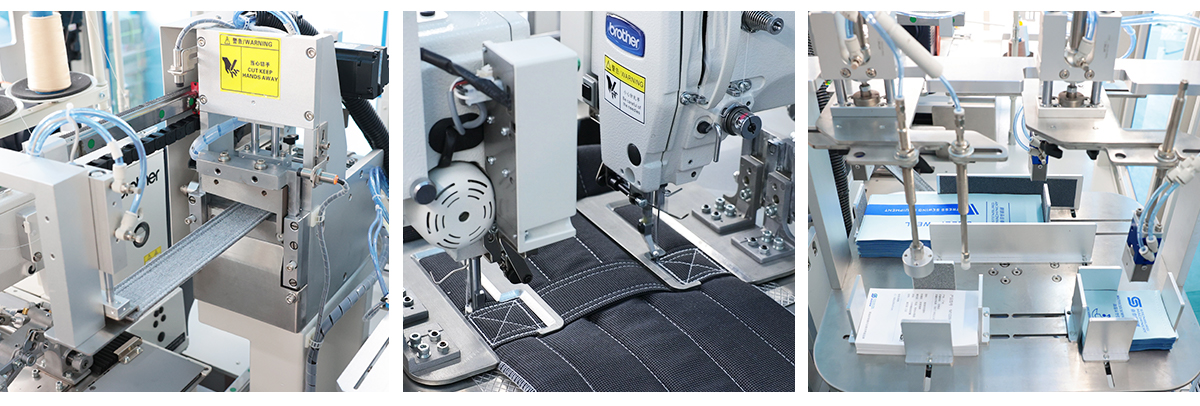

Detail Pictures

细节图

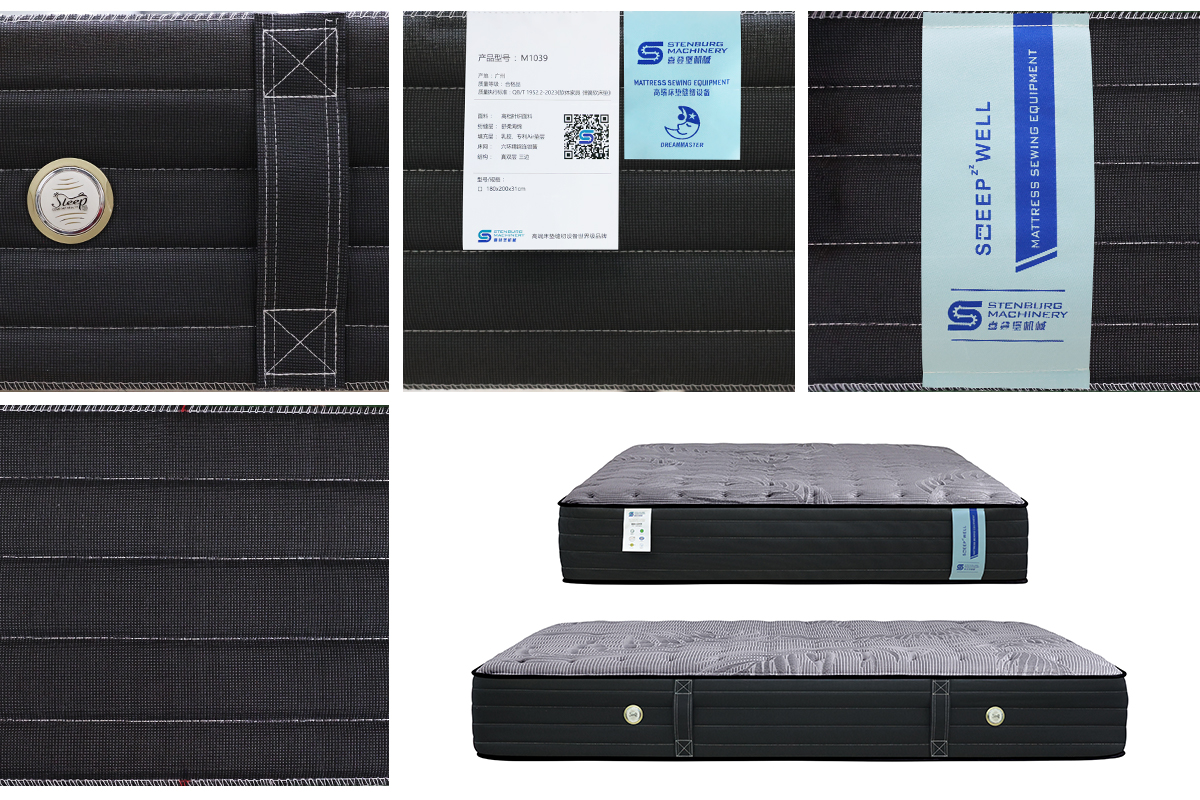

Effect Pictures

效果图

Technical Specification

Border width 190-350mm
Border thickness 5-20mm
Sewing speed 1500-2200RPM
Handle width 50mm-70mm
Handle thickness 2-10mm
Label width 40-140mm
Label length 50-350mm
Production speed 60-100s/pcs
Air pressure 0.7MPa
Voltage power 220V 50-60HZ 7KW
Weight 2300kg
