XDB-JM005 Ultrasonic Mattress Border Machine (Custom Model)

1. The latest ultrasonic control box is independently developed, with strong and stable power, suitable for long-term continuous operation.
2. The embossing roller can be designed arbitrarily, and different patterns can be made by replacing the embossing roller.
  • XDB-JM005

  • Stenburg Mattress Machinery

Availability:
Quantity:

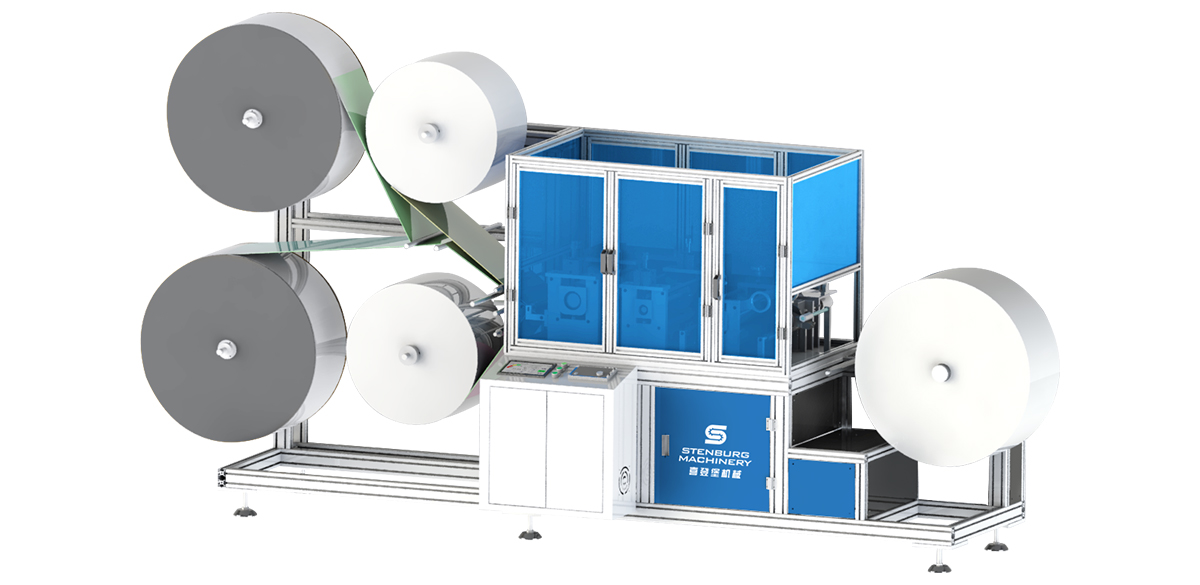

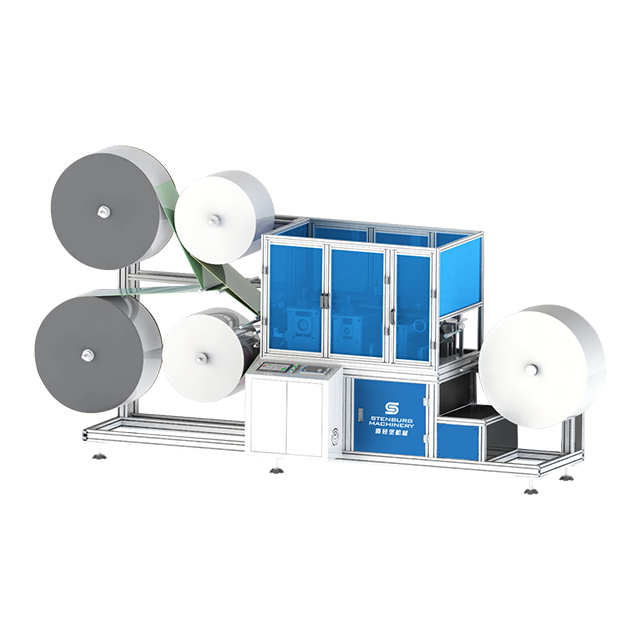

XDB-JM005 Ultrasonic Mattress Border Machine (Custom Model)

Technical Characteristics

1. The latest ultrasonic control box is independently developed, with strong and stable power, suitable for long-term continuous operation.

2. The embossing roller can be designed arbitrarily, and different patterns can be made by replacing the embossing roller.

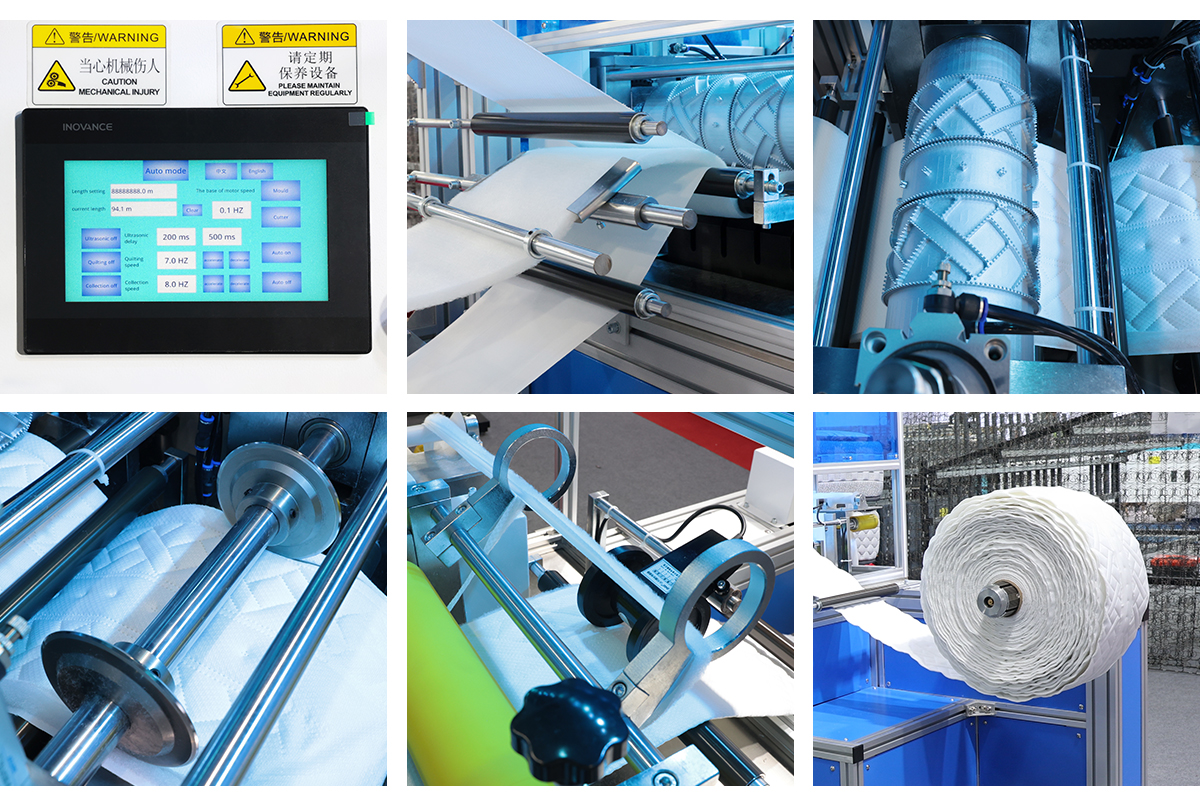

Detail Pictures


Effect Pictures


Technical Specification

Working width

≤300MM

Ultrasonic cutting range

20-30CM

Maximum unwinding diameter

600mm

Operation speed

0-20m/min

Ultrasonic power

2KW, 15Khz

Power supply

220V 3KW

Air pressure

0.6MPA

Dimensions (L*W*H)

2500*800*1500mm

Net weight

800KG
