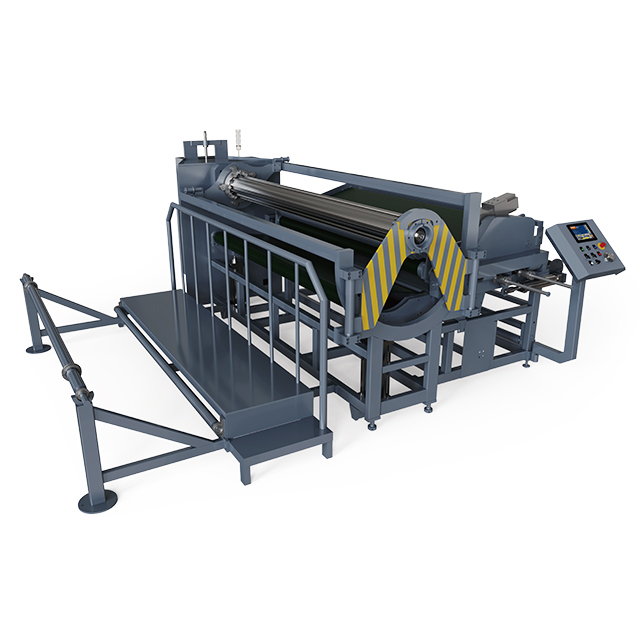

LR-PSL-15P Pocket Spring Units Roll-Packing Machine
Technical Characteristics
1.Accepts: sponge piece , pocket spring units , mattress with pocket spring or foam inside (without border wire) and so on
2.International patented discharging system for compressed-roll products provides secure package and prefect products
3.Electronic components are CE-conform and “off the shelf”（such as：Mitsubishi, SMC, CKD, Schneider,）
4.Compact design minimizes floor space
5.Low maintenance /stable performance
6.Easy to operate / short training period

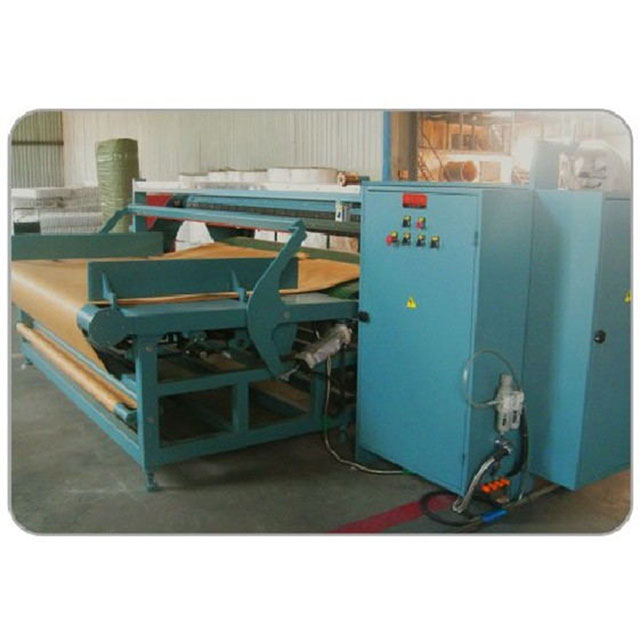

Detail Pictures
Effect Pictures
Technical Specifications
| model | LR-PSL-15P |
| Mattress width | 1600~2300mm |
| Mattress height | 50mm~250mm |
| Performance | 8~10minutes/Roll (6~13units/Roll) |
| Air consumption | Approx 5m3/h 0.8mpa |
| Power Supply | Approx 3φ 380V 50/60Hz 3.8KVA Input fuse 50A |
| Working temperature | +5℃ to + 45℃ |
| Weight | Approx. 1800Kg |
