XDB-240SMF Automatic CNC Fabric Digital Cutting Machine
You are here: Home » Products » All Mattress Machine » Mattress Accessory Machine » Mattress spring unit Accessory Machine » XDB-240SMF Automatic CNC Fabric Digital Cutting Machine

Product Category

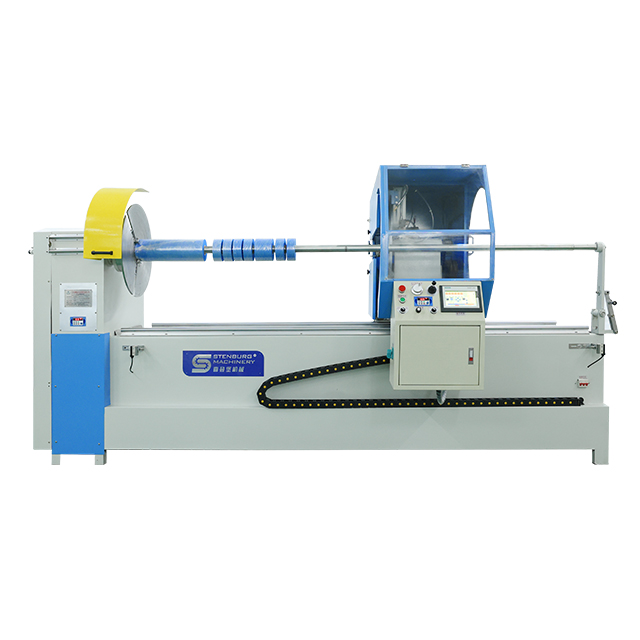

XDB-240SMF Automatic CNC Fabric Digital Cutting Machine

Automatic double CNC cloth cutting machine, flat push type automatic cutting machine is suitable for cutting cloth, non-woven and other materials of various widths
Availability:
Quantity:
  • XDB-240SMF
  • Stenburg Mattress Machinery

XDB-240SMF Automatic CNC Fabric Digital Cutting Machine

6


Product Description

Product Description: automatic double CNC cloth cutting machine, flat push type automatic cutting machine is suitable for cutting cloth, non-woven and other materials of various widths


Technical Characteristics

1. Adopt fast discharging design, one step. Loading and unloading can be completed with only one action.


2. The left and right displacement of the platen and the advance and retreat of the knife are controlled by imported high-precision stepping system and imported PLC.

3.so that the precision of cutting width can reach 0.1 mm, and the narrowest cutting width is 2 mm


4.Grinding with diamond grinding wheel, durable, not easy to heat, the blade has a high finish after grinding

5.The cloth clamping chuck is equipped with a safety cover, which does not hurt people.

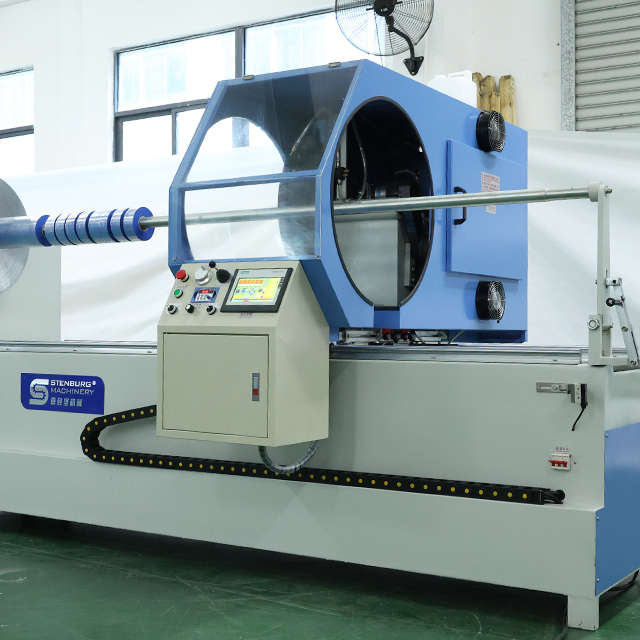

Detail Pictures

Detail Pictures


Effect Pictures

Effect Pictures

Technical Specification

Model

XDB-240SMF

Fabric widt

2.4 m

Fabric speed

0-800 (r/min)

Cutting cloth diameter

300mm, can also be customized 400mm, 500mm


Shaft diameter

37mm

Cloth motor power

0.75KW

Blade motor power

1.5kw

Minimum strip width

2mm

Voltage

380V/220V optional
