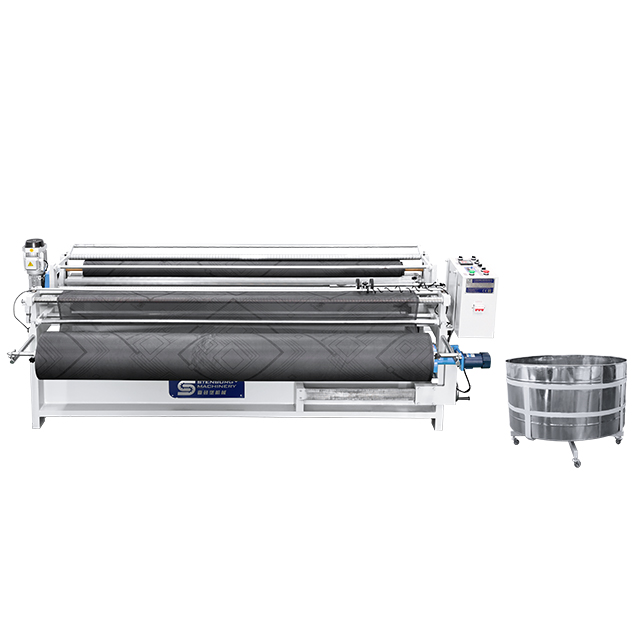

XDB-240BD Automatic Edge Vertical Diagonal Cloth Rolling Machine
Technical Characteristics
1.XDB-240BD rolling machine, as a matching machine of XDB-240ZM/SM rolling sitting machine, it is suitable for fabric rolling /rewinding. Can 45 degree angle cutting and rolling. With fabric edges align function.
2.Use of electronic edge device, cloth and materials looked the same edge after coiling, choose soft or hard according to the type of cloth.

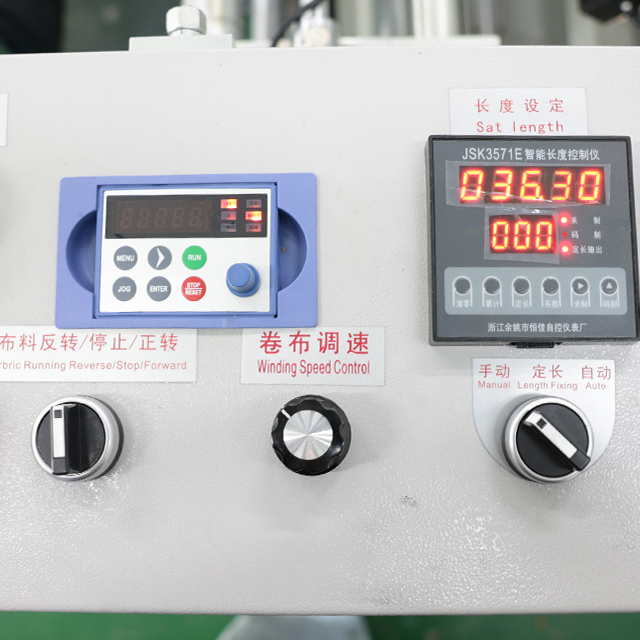

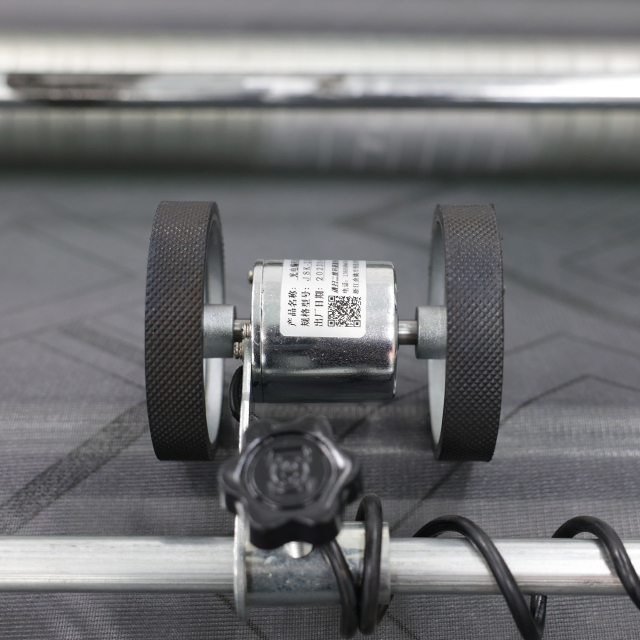

3. Equipped with the automatic control device code meter, can accurately remember cloth length and automatic control.
4. Roller speed can adjusted without distinction, high efficiency, saving human resource, it's convenient for single to operate.
5.Tweed cloth can be 20 degree t0 70 degree in regulation.
6.Adoption of stainless steel cloth bucket, which never rust, avoid contaminating cloth.
7.The machine can be used with Model XDB-240 trip cutting machine to make clothe into best use.
Detail Pictures
Effect Pictures
Technical Specifications
Model | XDB-240BD |
Rolling cloth breadth | 2.4m (1.7m, 2.05m, 2.4m, 2.8m, 3.2m optional) |
| Max cloth rolling diameter | 300mm |
| Fastest cloth rolling speed | 80m/min |
| Cloth rolling power | 1.5KW |
| Blade power | 0.12KW |
| Power voltage | 380V/220V optional |
| Table Size | 3.2mX0.95mX1.4m |
