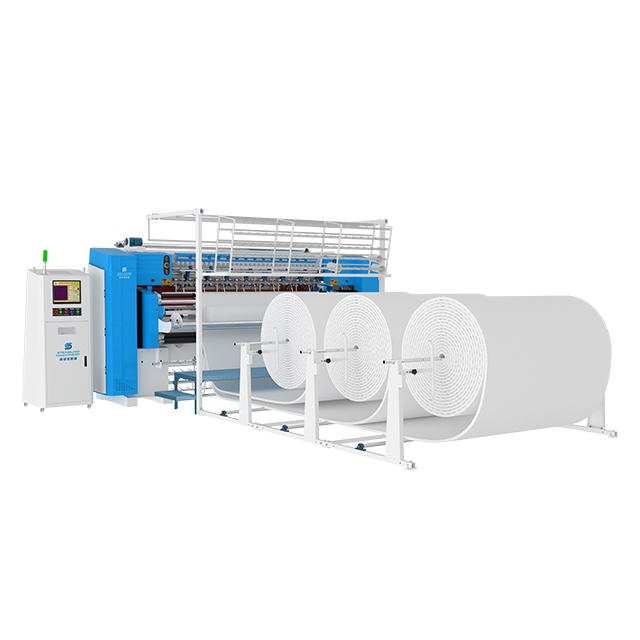

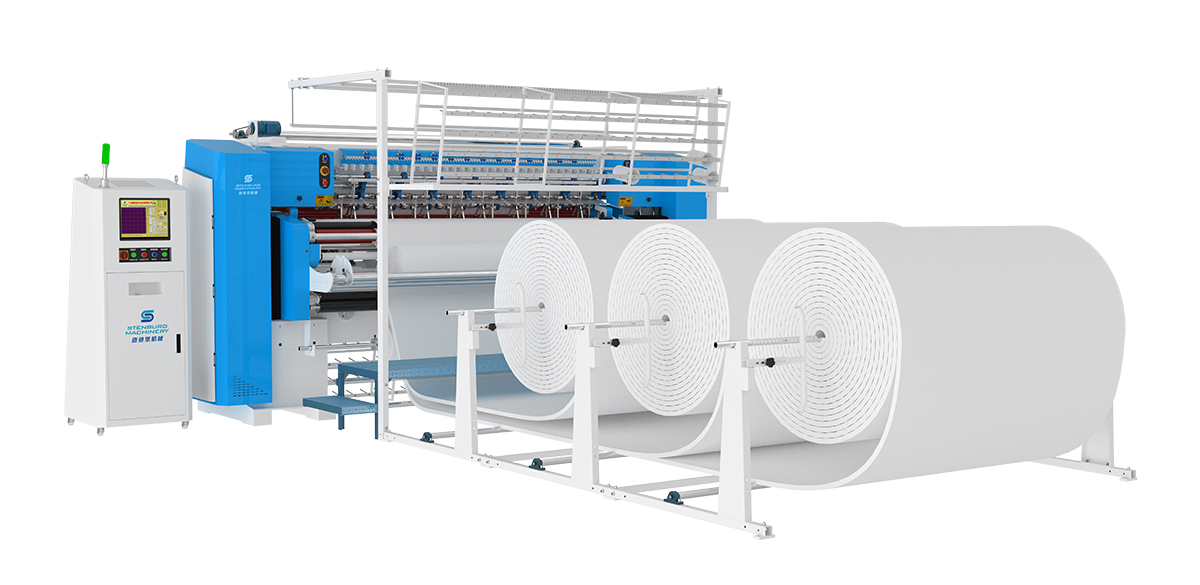

XDB-W-BSJ-3+JB-1 Mattress Fabric Computerized Chain Stitch Multi-needle Quilting Machine 【Slittng Device】Production Line + Automatic rewinding

It is widely used for quilting high-quality mattresses, quilt covers, and household ornaments. Different patterns are available.
  • XDB-BSJ-3+JB-1

  • Stenburg

Availability:
Quantity:

1200

XDB-W-BSJ-3+JB-1 Mattress Fabric Computerized Chain Stitch Multi-needle Quilting Machine Slittng DeviceProduction Line + Automatic rewinding

Technical Characteristics

1.Based on all the functions of XDB-W-SJ, below new functions are added

2.CAD drawing methods enable precise, convenient,and efficient qraphics creation

3.Needle space is 0.5 inch, thus it can produce lines with space of 0.5 inch and with more pattern combinations.

4. With slitting devices, enabling the edge taping materials more accurately and effectively

5.The user can use one quilting machine XDB-W-BSJ-3 to produce edge taping materials,he also can combine XDB-W-BSJ-3 and XDB-W-SJ working together, which has higher production efficiency.

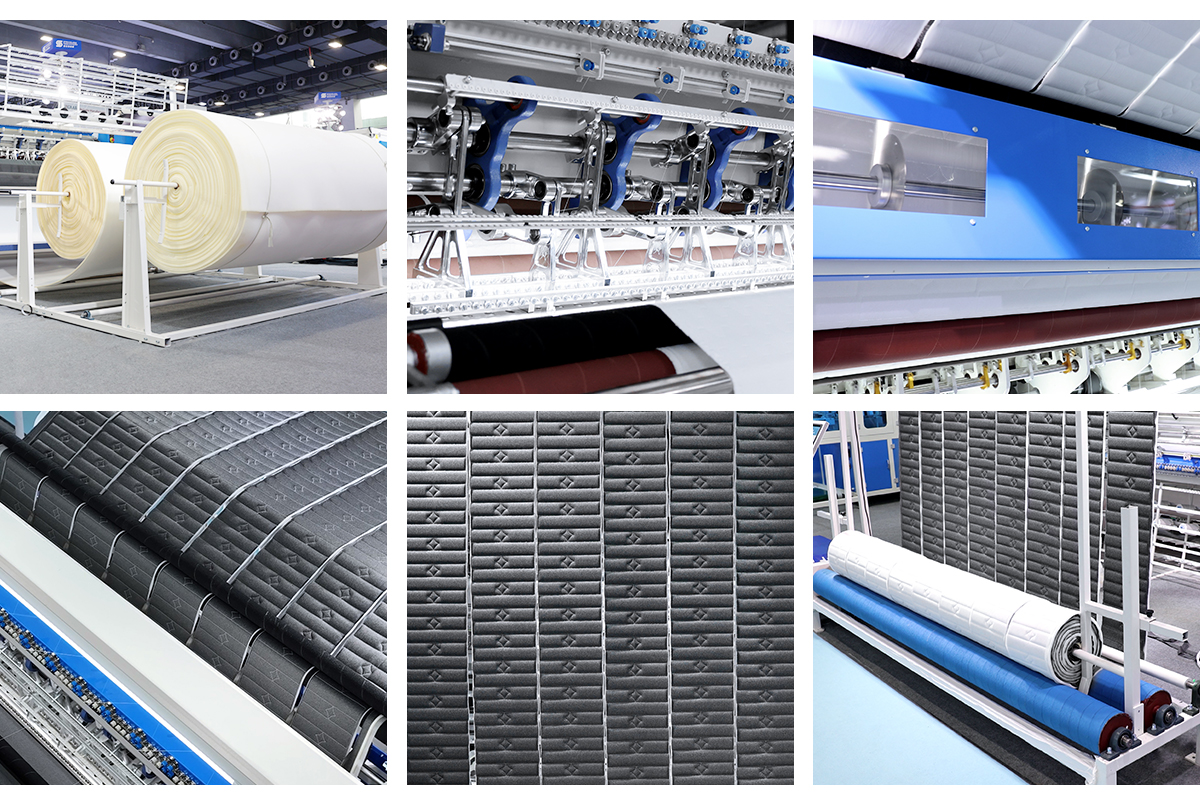

Detail PicturesXDB-W-BSJ-3+JB细节图

Effect Pictures

XDB-W-BSJ-3+JB效果图_01

XDB-W-BSJ-3+JB效果图_02

XDB-W-BSJ-3+JB效果图_03

Technical Specifications

model XDB-W-BSJ-3
Machine size L4700xW1500xH2100 mm
Quilting width 2550mm
Thickness of quilting ≤80mm(for all patterns)
Stitch length 3~8mm
Speed of operation 60~300 m/h
Slitting width 100~400 mm
Quilting speed 600~1200 RPM
Space between needle rows 50.8,76.2,127(5")

76.2,76.2,152.4(6")

Space between needles 12.7mm
X-axis movement displacement 350mm
Model of needle 24/18023/16022/14021/130
Total power required 8.5KW
Voltage 380V/50HZ220V/60HZ
Gross weight 5600KG


model XDB-JB-1
Machine size 2800x626x390mm
Rolling Speed 15m/min
Rolling width 2500mm
Motor power 0.2kw
Weight 200kg
Voltage 380v/50hz  220v/60hz
