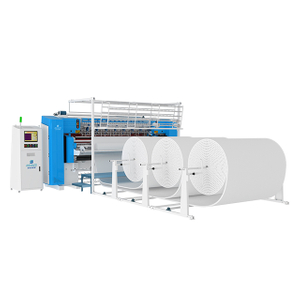

XDB-W-BSJ Computerized Chain Stitch Multi-needle Quilting Machine (Slittng Device)

Product Description

It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast.

Technical Characteristic

1.Optimized the mechanical structure make the higher speed and more production;

2. Needle bar and the  press plate connected by cam-free double-swinging device, firm structure,  reliable performance, without using lubrication oil.

3. Multi-span and independent patterns(360° And 180° Patterns  are available)

4. Automatic pause in the case that the upper thread or the bottom thread  breaks. Automatic needle-lifting and CNC speed adjustment.

5.CE certificate.

6.No need to adjust  the press plate's position when the thickness of quilting materials varies.

7. Available features such as high rigidity, high speed of running, low noise.

8. New edition of CNC control system,no need to  adjust the press plate' s position when the thickness of quilting material  varies;

9. CAD drawing method  to ensure the precision of pattern and facilitate the operation.

10. Strong functions of pattern-combining and multi-span quilting to enable you  to quilt different sizes.

11. Running state detecting and indicating in order to show how the machine  works.

Based on all the functions of  HY-W-BJS,below new functions are added.

1. Needle space is 0.5 inch,thus it can produce  lines with space of 0.5 inch and with more pattern combinations.

2. With slitting devices,which enable the edge taping  materials more accurately and effectively.

3.  The user can use one quilting machine  HY-W-BJS to produce,edge taping materials,he also can combine XDB-W-BSJ and  XDB-W-BSJ working together.

Detail Pictures

Effect Pictures

Technical Specification
