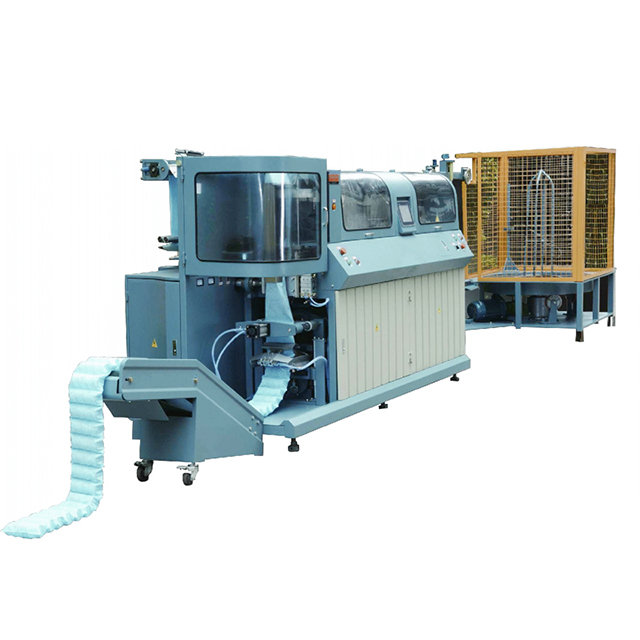

LR-PS-HF Automatic Pocket Spring Coiling Machine
Product Description

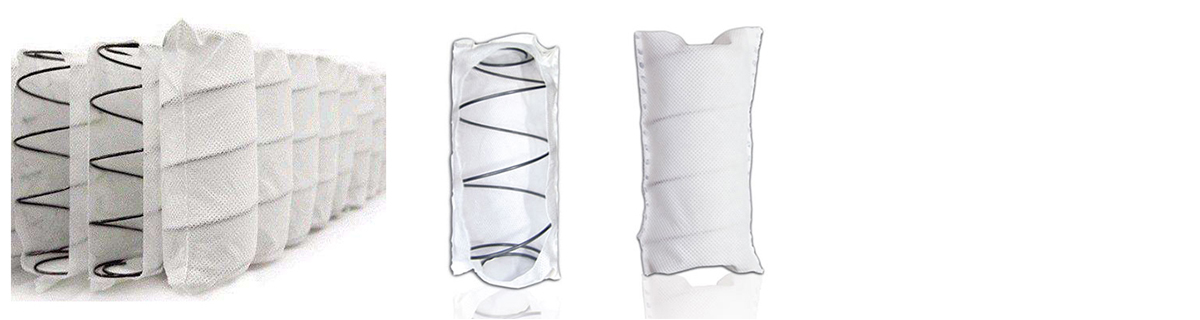

LR-PS-HF Automatic Pocket Spring Coiling Machine is a mattress special equipment for producing back-sealed bagged springs. It can automatically complete the winding, heat treatment, conveying and bag forming of springs in one working cycle. Our company combines the experience of manufacturing bagged spring winding machines for many years to develop high performance, high efficiency and high stability models. This machine is a fully automatic device for making mattress furniture and sofa cushion springs.
Technical Characteristics
1.High cost performance, high stability, low failure rate, low scrap rate
2.Mechanical conveying is controlled by servo-level system
3.User-friendly fabric connection device improves work efficiency when changing fabrics
4.Movable heat treatment mechanism for springs of different heights
Technical Specification
| Character |
| Model | LR-PS-HF |
| Production capacity | 70 springs/min |

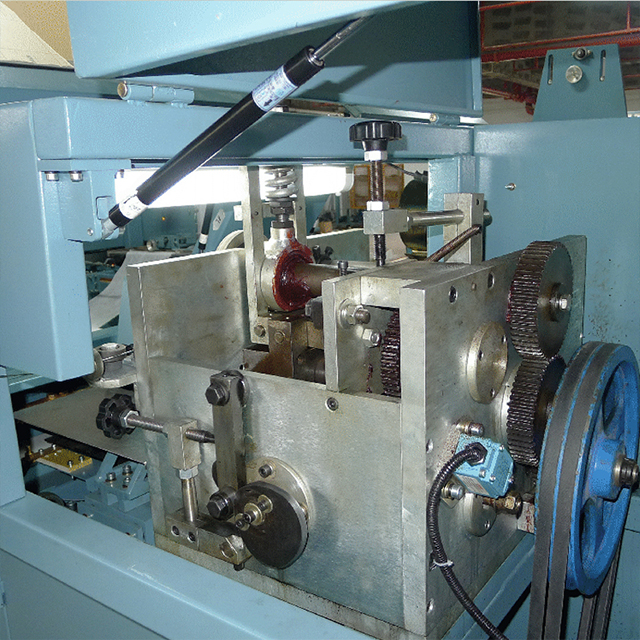

| Coiling head | One cam coiling head |
| Working principle | Servo control |
| Spring shape | Barrel and cylindrical |
| Air consumption | Approx.0.5m3/min |
| Air consumption | 0.6-0.7mpa |
| Power requirements | Approx.21kw |
| Voltage | 3AC 380V |
| Frequency | 50/60Hz |
| Input current | 32A |
| Cable section | 4*10mm2+1*6mm |
| Working temperature | +5℃±35℃ |
| Weight | Approx.3200Kg |
| Consumption Material Data |
| Non-woven fabric |
| Fabric density | 65-90g/m2 |
| Fabric width | 220-600mm |
| Inner dia. of fabric roll | Min. 60mm |
| Outer dia. of fabric roll | Max. 600mm |
| Steel wire |
| Wire diameter | 1.6--2.3mm |
| Inner dia. of wire roll | Min. 320mm |
| Outer dia. of wire roll | Max. 1000mm |
| Acceptable weight of wire roll | Max. 800kg |
| Working range(mm) |
| | Wire Diameter | Spring Waist Diameter | Pocket Spring Height |
| 1 | 1.6-2.2 | 55-75 | 80-220 |
| 2 | 1.6-2.3 | 65-80 | 160-300 |
| 3 | 1.0-1.6 | 37-50 | 100-200 |
