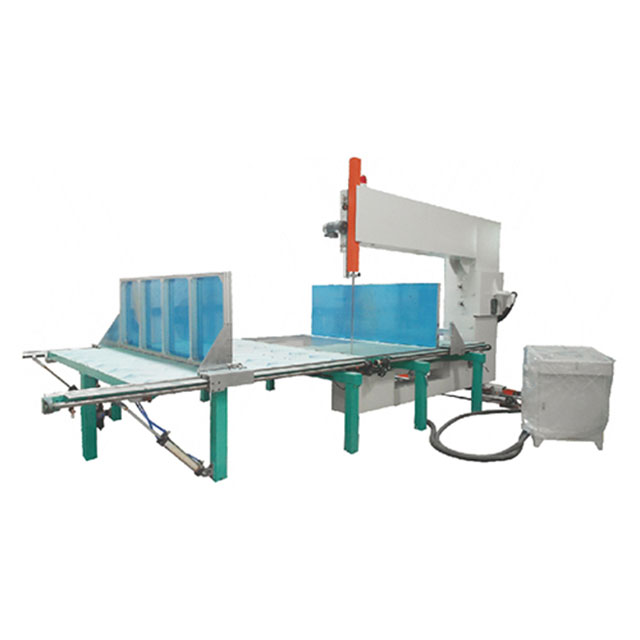

XLQ-4LB Automatic Vertical Foam  Cutting Machine

Product presentation

The machine adopts head moving ,table fixed form  ,movable cutting tool rest with synchronous belt drive ,work platform single  damper using cotton .The machine adopts frequency control of motor speed  automatic control ,the control platform with PLC and human-computer interface  ,with a high degree of automation ,cutting precision ,safe operation etc.

Technical Specification

model XLQ-4LB
Blade length 10180mm
Baffle moving range 2100m
Total power 7.24kW
Baffle moving speed 1.5m/min
Inner worktable size (WxL) W2440mmxL2440mm
Outer worktable size W2440mmxL2440mm
Machine external size L6450mmxW4200mmxH2665mm
Available cutting size 2100mm
Cutting thickness 3-100mm
Available cutting height 1100mm
Blade frame moving speed 0-20m/min
Automatic Vertical Foam Cutting Machine
